Script server back end design document

This document should be read alongside the front-end design document.

What it should do

  • Accept multiple clients

  • Serve up a list of available commands for the specified instrument over some protocol. The command should contain command parameters and a description, for example:

    • Name: set_ei

    • Parameters: incident energy (double)

    • Description: Positions the choppers to allow the specified incident energy through

  • The commands are instrument specific scripts written by the instrument scientists and/or controls team, and are stored on the server

  • New commands can be added relatively quickly without requiring changes to the client

  • Accept and queue up jobs from clients and add them to the job queue

  • Provide feedback on the status of the job queue

  • Provide feedback on the status of the current job (% done, current line etc.)

  • Iterate through the job queue

  • Execute the jobs, one at a time from the queue

  • Allow the job queue to be edited (e.g. reordered, jobs skipped or repeated)

  • Allow the current job to be paused or aborted

  • When a job is paused the next action is to resume it or abort it. It is not possible to run a different job then return to the paused job

  • If the job is paused and the user manually changes the beamline then that change is keep when the job is resumed

  • If a job is aborted it can be run again, but it will start from the beginning; however, it can be edited before being re-run

  • Allow individual jobs to be edited (excluding the current job?)

  • Provide a description of what existing jobs consist of (to allow editing)

  • Provide an estimate of how long a job will take

  • Provide the elapsed time for the current job

  • Run a black-box script as a job (see submitted scripts section below)

  • Provide script validation, e.g. allow a dry run of a script or job

  • Provide robust error handling and reporting

Submitted scripts

Different types of script:

  • Script server aware – created by a script generator

    • Loops unwound so each iteration is used to produce a job

    • Each job has tags for providing feedback, such as progress information, to the clients

  • Script server aware – written by hand

    • Includes tags for the script server to provide extra functionality for the script server; such as “pause points” and progress information

  • Black-box scripts – written by hand

    • Contains no information for the script server

    • Script server runs it as a single job but cannot pause it or report progress

    • Can be aborted

Architectural design

Decisions already made:

  • Scripts, commands and jobs will be written and run in CPython

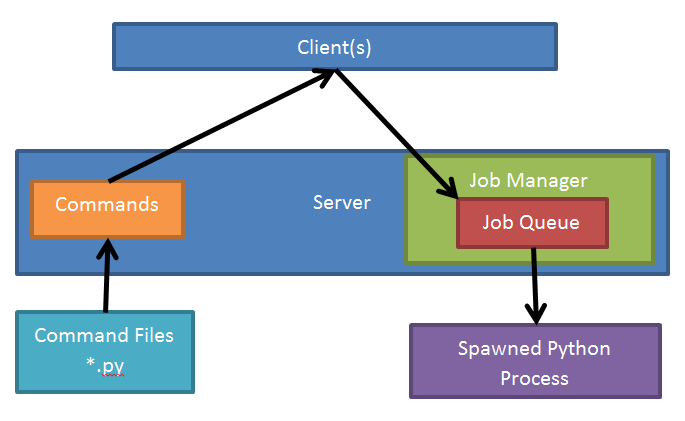

A simple diagram of the design:

Back End Design

Commands:

  • The instrument specific commands are loaded from a certain area on the NDX

  • The command sources contain documentation describing the command and the parameters

  • The list of commands and their information are served

Jobs:

  • The Job Queue contains the jobs to be run

  • The jobs are Python scripts/snippets

  • The Job Manager is responsible for managing the queue and the running of the job

  • For each job the Manager spawns a new* Python process to run the job

  • If the job is configured correctly the Job Manager can query the status of the job

(*) This means there is no state shared between jobs – do we want this?
